Product Details:
|
| Type: | Indoor | Frequency Range: | UHF:470-862MHz |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Gain:: | 5-6dBi |
| VSWR:: | 2.0:1 Max | Radiation Pattern: | Omni-directional |
| Polarization:: | Linear | Frequency Range:: | 470-862MHz |
| Connector:: | F/IEC(M)(Optional) | Impedance:: | 50/75 Ohm |
| Cable:: | 3C-2V Or Other | Size:: | 224*224mm |
| Port: | Shenzhen |

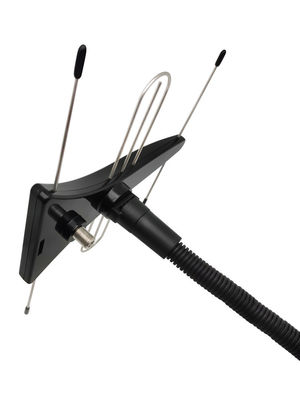

High Gain 75 Ohm Fm Uhf Vhf Dvbt2 Digital Vhf Yagi Outdoor Indoor Digital HDTV Antenna
Easy to Set up:
1.) Connect the coaxial cable on the antenna to the amplifier.
2.) Place the antenna, preferably on a window or as high as possible.
3.) Connect the HDMI cable from the amplifier to the TV.
4.) Go to input on your TV and make sure it is set for TV
Parameter
|
Product Name
|
TV Antenna
|
|
Model
|
BIO-V253
|
|
Frequency Range
|
UHF:470-862MHz
|
|
Gain
|
5-6dBi
|
|
Amplifier
|
20dB
|
|
V.S.W.R
|
2.0:1 Max
|
|
Impedance
|
50/75 Ohm
|
|
Polarization
|
Linear Horizontal
|
|
Cable
|
3C-2V
|
|
Connector
|
F/IEC(M)(Optional)
|
|
Size
|
224*224mm
|
Indorr antenna with amplifier
supports 4K 8K 108OP VHF UHF
Freeview Local Channels
Directional high gain indoor Yagi
TV antenna with suction cup
for easy installation
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
