Product Details:
|
| Type: | Outdoor | Frequency Range: | UHF:470-862MHz |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Gain(dB): | 5-6 DBi (Amplifier Optional) |
| V.S.W.R: | 2.0 : 1 Max | Impedance: | 75 Ohm |
| Radiation Pattern: | Omni-directional | Polarization: | Linear |
| Cable: | 3C-2V /RG-59 | Connector: | F/IEC(M)(Optional) |
| Size: | 280*90.5mm | Port: | Shenzhen |
| High Light: | 862MHz Camping Tv Antenna,862MHz Caravan Tv Aerial,75Ohm Camping Tv Antenna |
||
| Frequency range | UHF:470~862MHz |
| Gain | 5-6 dBi |
| Amplifier | 20dB(optional) |
| V.S.W.R | 2.0 : 1 Max |
| Impedance | 75 Ohm |
| Radiation Pattern | Omni-directional |
| Polarization | Linear |
| Cable | 3C-2V /RG-59 |
| Connector | F/IEC(M)(Optional) |
| Size | Φ280*90.5mm |

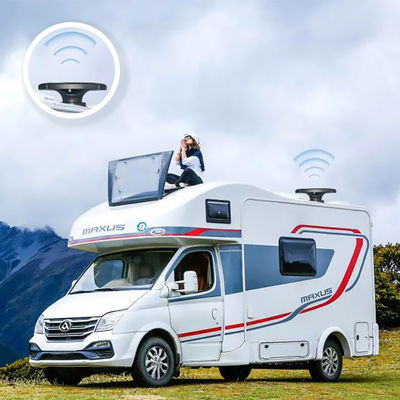

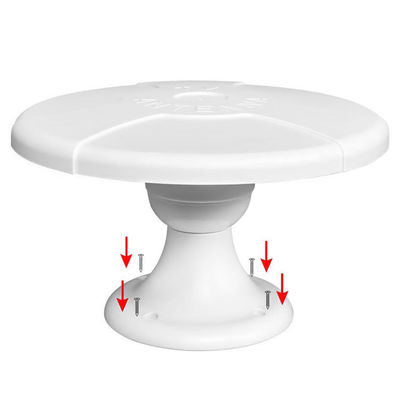

Fixed on RV roof with 4 screws.
Multi-function bracket allows it tobe mounted on roof, wall, balcony, etc.
Big magnetic base(0280mm) allows
it to be mounted on RV roof firmly.

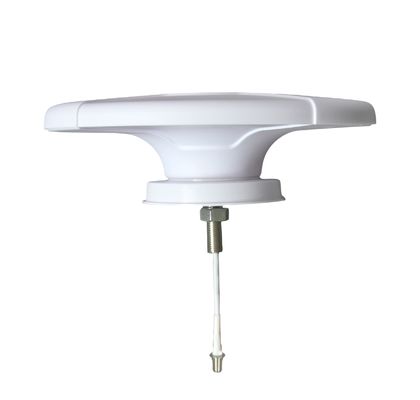

Connector type, cable
type(length) can be customized.
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
