Product Details:
|
| Type: | Indoor | Frequency Range: | VHF174~230 / UHF470~862Mhz |
|---|---|---|---|
| Frequence Range: | VHF174~230/UHF470~862Mhz | Gain(dBi): | 5-26 DBi(10dB/20dB Amplifier Optional) |
| Impedance: | 50ohm / 75 Ohm | V.S.W.R: | 2.0 : 1 Max |
| Polarization: | Linear Vertical | Connector Type:: | F/IEC (M) (optional) |
| Cable Type: | 2.5C-2V | Cable Length: | 1m~5m(optional) |
| Size: | 35* 270 Mm | Business Type: | Manufacturer |
| Port: | ShenZhen | ||
| High Light: | 5V Digital HDTV Antenna,Bamboo 5v 26DBi Digital HDTV Antenna,ce 50ohm 26DBi ATSC tv antenna |
||

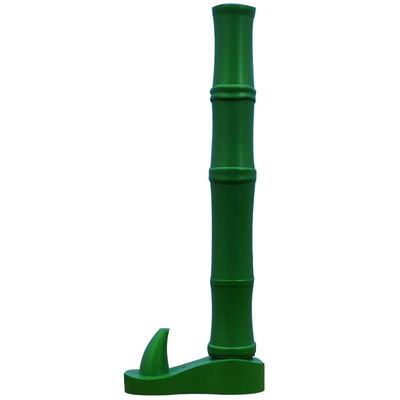

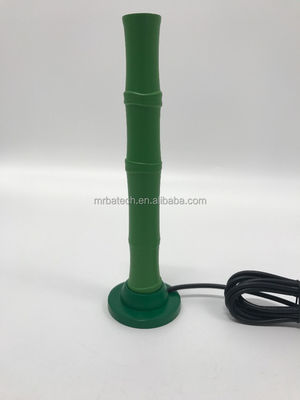

2018 Fashion Bamboo 1080 P Booster Amplifier High Gain Indoor Digital TV Antenna For Home ATSC/DVB-T/ISDB-T
* Order before we can provide samples for you, which is used to test the practicability of products in your
region.
Product Description:
|
Frequency Range:
|
VHF: 147-230 MHz / UHF: 470-862 MHz
|
|
Gain:
|
5-26 dBi
|
|
Amplifier :
|
20 dBi / 30 dBi
|
|
V.S.W.R.:
|
2.0:1 Max
|
|
Input Impedance:
|
50 / 70 Ohm
|
|
Polarization:
|
Linear
|
|
Working voltage:
|
5 V
|
|
Cable type:
|
2.5C-2V
|
|

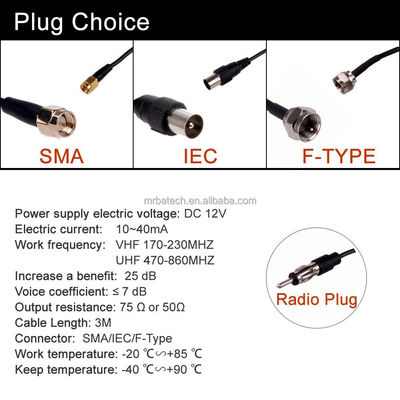

Connector
|
F(M) / IEC (M) ( Optional)
|
|
Size
|
35*270 mm
 |
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you make OEM products?
A : Yes,we can do.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
