Product Details:
|
| Type: | 2.4GHz & 5GHz Antenna | Product Name: | GSM/5G Antenna |
|---|---|---|---|
| Frequency Range: | 1710-2170MHz | Gain: | 2-3dBi |
| V.S.W.R: | 1.5:1 Max | Impedance: | 50 Ohm |
| Polarization: | Linear Vertical | Cable: | RG-174 |
| Size: | 48*110mm | Port: | Shenzhen |
| High Light: | Long Range Wifi Antenna 2700Mhz,long range 5ghz wifi antenna 700Mhz,Customized Long Range Wifi Antenna |
||
Customize Long Range 700 To 2700 Mhz Hotspot Omni Wifi Receiver 2.4 3G 4G Lte Antenna
Main feature
1. - High gain ,full day working
2. - Good appearance
3. - Durable ,corrosion resistance
4. - Provide with mount kits
5. - Optimized dimension
| Product Name | GSM/3G Antenna |
| Model | BIO-G510 |
| Frequency Range | 1710-2170MHz |
| Gain | 2-3dBi |
| V.S.W.R | 1.5:1 Max |
| Impedance | 50 Ohm |
| Polarization | Linear Vertical |
| Cable | RG-174 |
| Size | Φ48*110mm |
Reliability test:
| Project | Test Condition | Result |
| High and low temperature test | TH (test temperature): 70 C + 2;TL (test temperature): -40 C + + 2;Conversion time less than 1 minutes, a total of 24 cycles | Meet the mechanical and electrical properties |
| Resistance to constant damp heat test | 25 to 55 degrees C, 85% ~ 95%RH; 24 hours a cycle, a total of 2 cycles | Meet the mechanical and electrical properties |
| Salt spray corrosion test | Salt fog concentration of 5% NaCl solution, the temperature is 35 | Meet the mechanical and electrical properties |

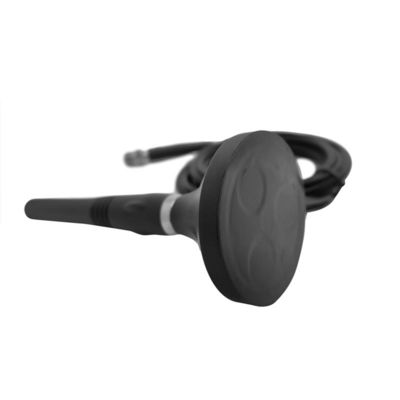

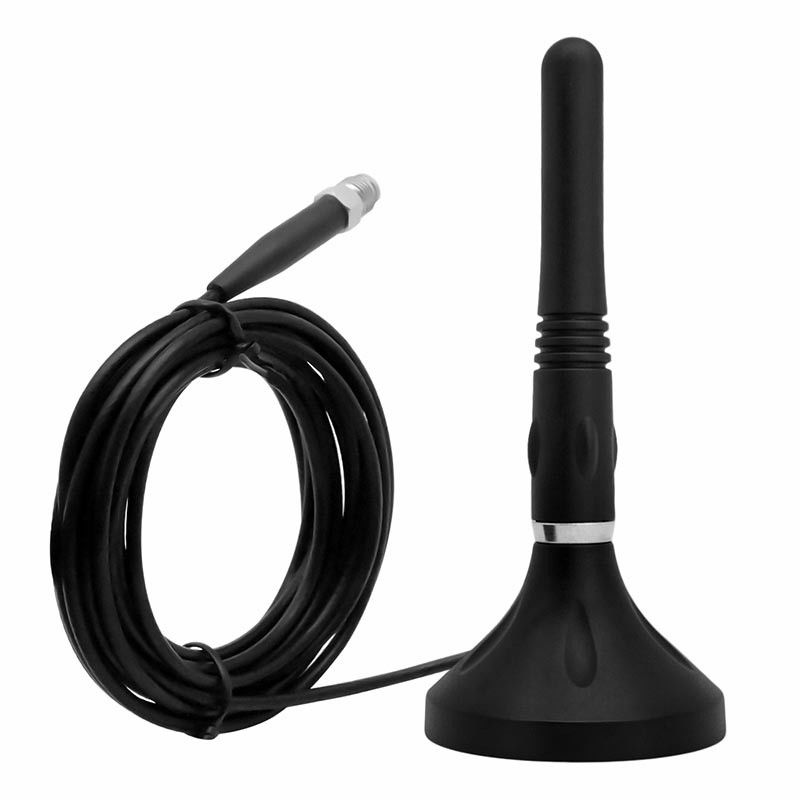

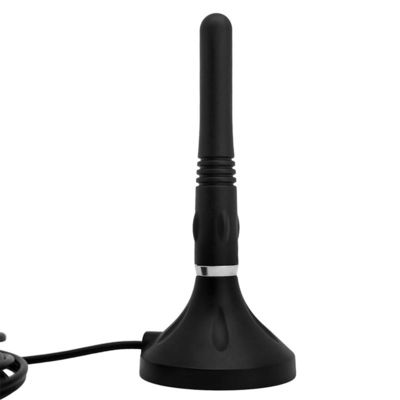

Duarable plastic materialwith magnetic base
Omni-directional radiationwith good signal
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
