Product Details:
|
| Type: | Indoor | Frequency Range: | FM/VHF/UHF /DAB |
|---|---|---|---|
| Frequence Range: | FM/VHF/UHF /DAB | Gain(dBi): | 5-28 DBi (20dB Amplifier Optional) |
| Impedance: | 75 Ohm | V.S.W.R: | 2.0 : 1 Max |
| Polarization: | Linear Vertical | Connector Type:: | F/IEC (M) (optional) |
| Cable Type: | 1.5C-2V | Cable Length: | 1m~5m(optional) |
| Size: | 680*19*12 Mm | Certificate: | RoHs / CE |
| High Light: | 28dBi Car WIFI Antenna,75Ohm Car WIFI Antenna,28dBi vehicle wifi antenna |
||

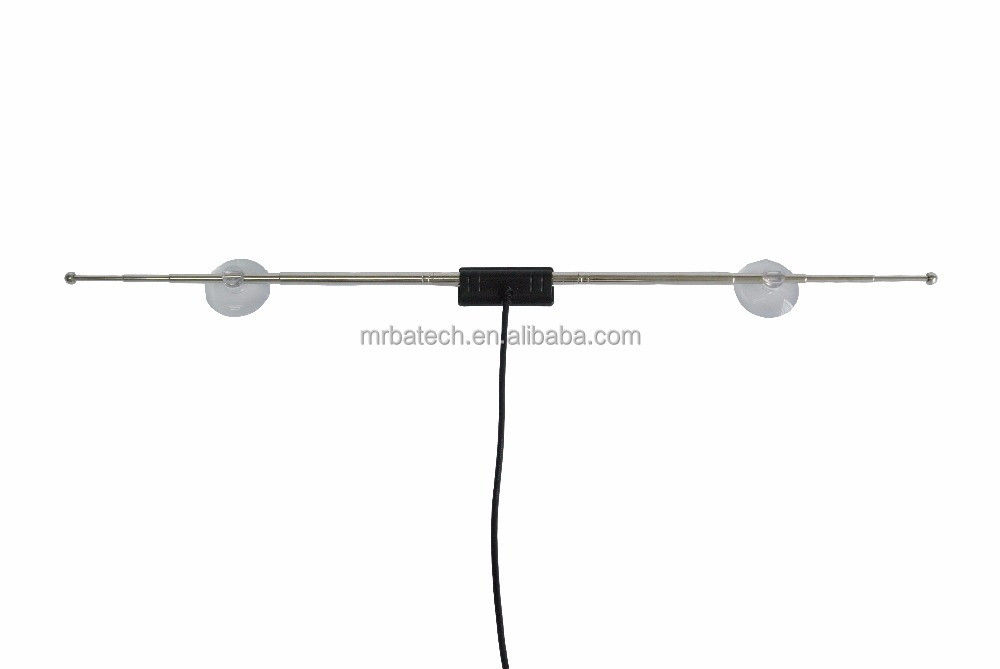

With Sucking Disc Amplifier High Gain Car Digital TV WIFI Antenna
ATSC/DVB-T/ISDB-T :
* Provided with sucking disc , Amplifier, USB power supply , it can easily be mounted for great reception.
* Order before we can provide samples for you, which is used to test the practicability of products in your region.
| Frequency Range: | FM / VHF / UHF / DAB |
| Gain: | 5-28 dBi |
| Amplifier : | 20 dBi / 30 dBi |
| V.S.W.R.: | 2.0:1 Max |
| Input Impedance: | 75 Ohm |
| Polarization: | Linear Vertical |
| Working voltage: | 5 V |
| Cable type: | 1.5C-2V / 2.5C-2V |
| Connector | F(M) / IEC (M) ( Optional) |
| Size | 680*19*12 mm |
| Radiation pattern | Omi-directional |
The Installations:
* This HDTV antenna no need any tools for installation.
* There are 2 sucking disc can be stick on the glass and wall easily.
* Portable TV antenna can be remove easily.
Features:
1) good partner for passive digital outdoor antennas
2) Mini design and water-proof
3) power from STB receiver DC5V workable
4) high gain low noise
5) Compatible with all types of analogue signals and digital signals like DVB-T/DVB-T2/ATSC/ISDB/DMB-T
Product usage introduction
➊Connect the end(f-male)of attached coaxial cable to the ANT/IN connector on the back of the TV or DVB-Ttuner.
➋In the TV/'s setup menu,set the tuner mode to ''Antenna''or''Air''.for more detailed instructions,please refer to your TVmanual.
➌In the Tv/'s setup menu,set TV to ''scan''for channels.this can sometimes be listed as auto-program,auto-scan,channel search or
channel scan.consult the tv manual for detailed instructions.
➍If reception is sporadic,try moving the antenua to another location and rescanning the tv until optimal position is found.
➎Fix the antenua at the optimal position you found.
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
