Product Details:
|
| Type: | Outdoor | Frequency Range: | VHF:174-230 MHz / UHF: 470-862 MHz, 470-862MHz |
|---|---|---|---|
| Usage: | Outdoor | V.SW.R: | 2.0:1 Max |
| Gain: | 9-35dBi(10 / 20 DBd) | Impendance: | 75 Ohm |
| Cable: | RG-59 | Size: | 400*800mm |
| Polarization: | Liner | Connector: | IEC(M) |
| Material: | Aluminium | Port: | ShenZhen |
| High Light: | 35dBi Outdoor Yagi Antenna,pole mounting Outdoor Yagi Antenna,35dBi Portable Yagi Antenna |
||

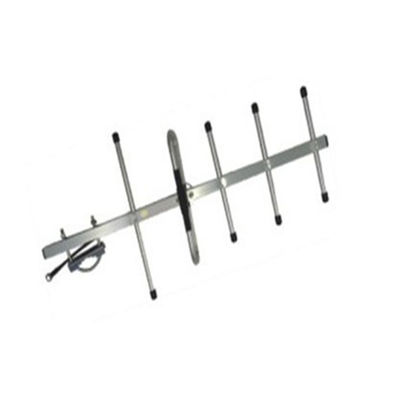

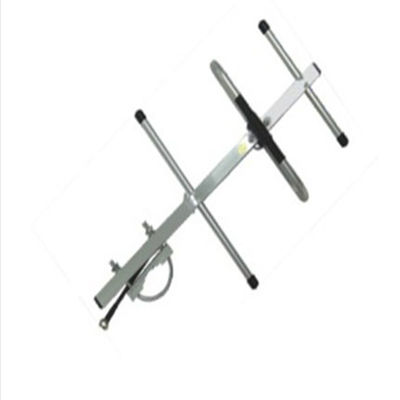

Portable Installation High-Quality Village TV Outdoor Yagi Antennas
1) Designed for pole mounting
2) Antenna mast clamp included
3) Aluminum 5 /9 elements pre-assembled
4) High gain 14dbi (V104) and Full channel achieved
5) Improves all available digital terrestrial UHF TV signals
| Product Name | hd tv antenna |
| Model | BIO-V931 |
| Frequency | VHF: 76-230MHZ/ UHF: 470-862MHz |
| Gain | VHF: 5.5dBi(3.5dBd)/ UHF: 12dBi(10dBd) |
| V.S.W.R | 2.0:1 Max |
| Impendance | 75 Ohm |
| Polarization | Linear |
| Cable | RG-59 |
| Connector | F/IEC |
| Size | 346*824MM |
Application:
Point-to-point
Wireless bridging,client termination antenna
Marketing Services:
1). Provide packing design for free. and accept OEM LOGO printing,packing design etc.
2). Develop new products available, we have own molding factory.
3). Business relationship & information with us will be confidential to any third party.
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you make OEM products?
A : Yes,we can do.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
