Product Details:
|
| Car Make: | Trucks, Cars | Frequence Range: | 26-28MHz |
|---|---|---|---|
| Gain(dB): | 0-1dBi | Cable Length: | 1070mm |
| Material: | Stainless Steel | Gain: | 1.5-2.5dBi |
| Mount Type: | Ground Mount | Connector: | UHF |
| Cable: | RG-174(Optional) | Service: | OEM,ODM |
| Port: | Shenzhen | ||
| High Light: | 27Mhz Truck Cb Antenna,1dBi Truck Cb Antenna,1dBi high gain cb antenna |
||

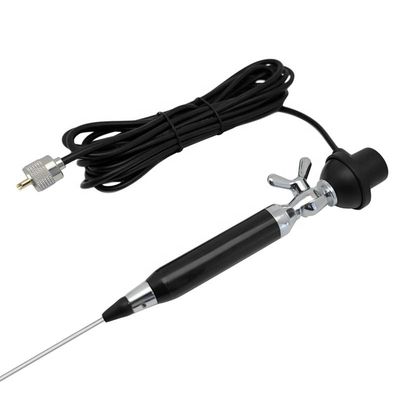

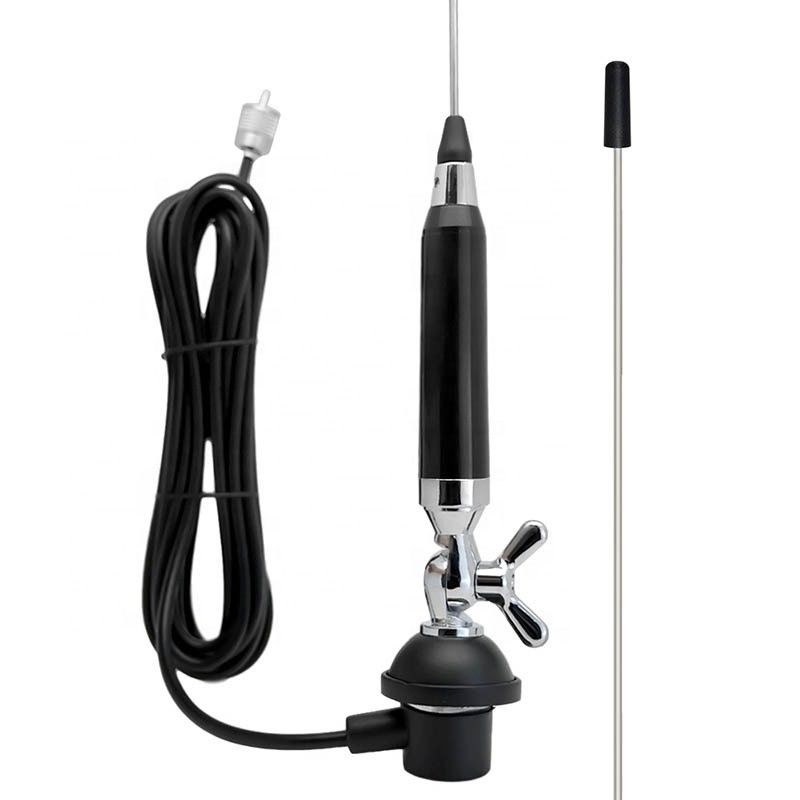

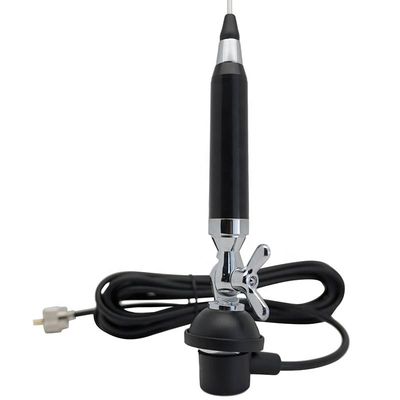

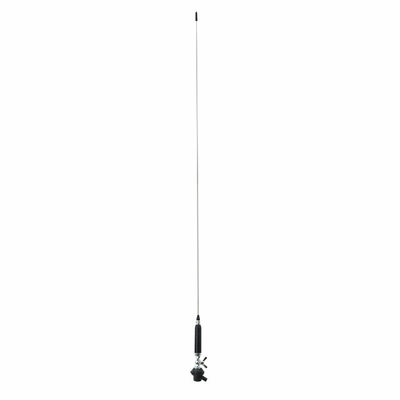

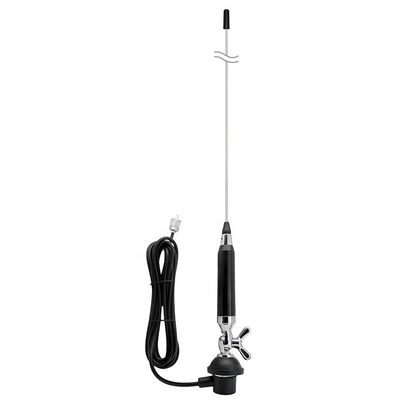

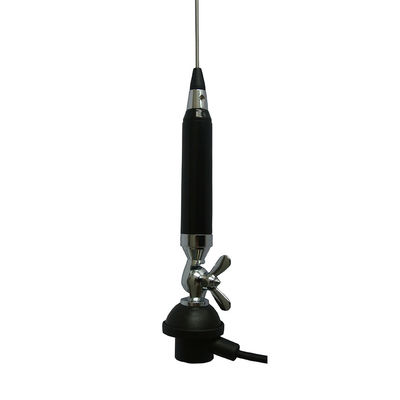

High Gain 27 Mhz Cb Antenna For Truck At 900 Cb Antenna
Our advantage
1. Our produce process conform to ISO 9001:2008 international quality system certifications.
2. Stable & Reliable quality is the foundation for our Company's development; our products comply with CE certification and reach specifications.
3. The CB/DVB/DVB-T2/WIFI/GSM Antenna that our company develops, all matches the EU ROHS standard through strict quality control
Product Parameters:
| Product Name | CB Antenna |
| Model | BIO-C900 |
| Frequency Range | 26-28MHz |
| Gain | 1-2dBi |
| V.S.W.R | 1.2:1 Max |
| Impedance | 50 Ohm |
| Polarization | Linear Vertical |
| Max Power | 300W |
| Cable | RG-58 |
| Connector | UHF(M)(Optional) |
| Size | Φ42*1070mm |
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868MHz 915MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 4.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | Brass | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | RG58 | |||||||||||
| Connector Type | SMA Plug | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
Stainless steel whip:we choose the durableflexible stainless steel
Outdoor car used, waterproof IP66
The antenna can be laid
down through the screw bolt
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
