Product Details:
|
| Car Make: | Truck, Car | Frequence Range: | 26-28MHz |
|---|---|---|---|
| Gain(dB): | 0-1dBi | Cable Length: | 1600mm |
| Product Name: | Antenna Cb For Car | Frequency: | 26~28MHz |
| V.S.W.R: | 1.5:1 Max | Impedance: | 50 Ohm |
| Polarization: | Linear Vertical | Max Power: | 300W |
| Cable: | RG58 | Connector: | UHF (M) (Optional) |
| Size: | 145*1600mm | Port: | Dongguan |
| High Light: | 1dBi 28MHz Car CB Radio Antenna,26MHz Car CB Radio Antenna,CB Car Radio Antenna 1dBi |
||

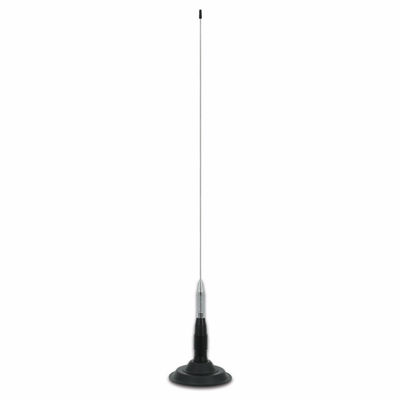

Wholesale High Quality CB Radio Antenna With Magnetic Base For Car
Feature
1) High Emission Efficiency
Pure copper element, has the high receiving sensitivity and higher transmission sensitivity
and higher transmission efficiency than suction cup antenna
2) Longer Communication Distance
* Copper oscillator for stable performance,high gain, low VSWR,wide band
* Accurate match of impedance
3) IP67 level waterproof
* UV resistance, no cracking, waterproof, wind resistance, strong sealing, widely used in
harsh environment such as the outdoor field
* aluminum alloy base: firm enough to against the strong wind
| Products name | CB radio antenna antenna cb for car |
| Frequency | 26~28MHz |
| V.S.W.R | 1.5:1 Max |
| Impedance | 50 Ohm |
| Radiation Pattern | Omni-directional |
| Polarization | Linear Vertical |
| Max Power | 300W |
| Cable | RG58 |
| Connector | UHF (M) (Optional) |
| Size | Φ145*1700mm |
Stainless teel whip
Pre-tuned
sensitive reception
Strong magnetic base
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
