Product Details:
|
Car Make: | Trucks, Cars | Frequence Range: | 26-28MHz |
---|---|---|---|
Gain(dB): | 0-1dBi | Cable Length: | 726mm |
Product Name: | Radio Antenna For Car | Frequency: | 26~28MHz |
V.S.W.R: | 1.5:1 Max | Impedance: | 50 Ohm |
Radiation Pattern: | Omni-directional | Polarization: | Linear Vertical |
Max Power: | 300W | Cable: | RG58 |
Connector: | UHF (M) (Optional) | Size: | Dia78*726mm |
Port: | Dongguan | ||
High Light: | CB Radio 915mhz Antenna,50Ohm Mobile CB Radio Antenna,726mm Cable Auto Radio Antenna |

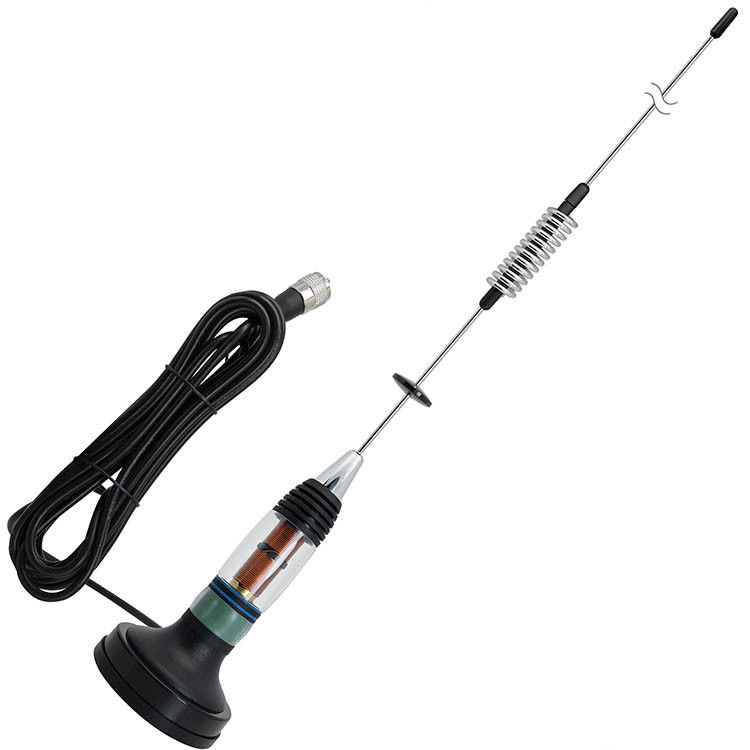

CB Mobile Antenna 27MHz Car Mobile CB Mobile Antenna Radio Antenna 26-28MHz
Feature
1) High Emission Efficiency
Pure copper element, has the high receiving sensitivity and higher transmission sensitivity
and higher transmission efficiency than suction cup antenna
2) Longer Communication Distance
* Copper oscillator for stable performance,high gain, low VSWR,wide band
* Accurate match of impedance
3) IP67 level waterproof
* UV resistance, no cracking, waterproof, wind resistance, strong sealing, widely used in
harsh environment such as the outdoor field
* aluminum alloy base: firm enough to against the strong wind
4) Widely applied
868/915MHz wireless module/Router/WiFi Signal Enhancement
Material:
Rubber / plastic , car / sucker , glass antenna , positioning / navigation / nautical , built-in , antenna cable , antenna connector , wire / cable , custom antenna .
ase to tune:
No need to cup whip to set SWR,
no need any tools for installation.

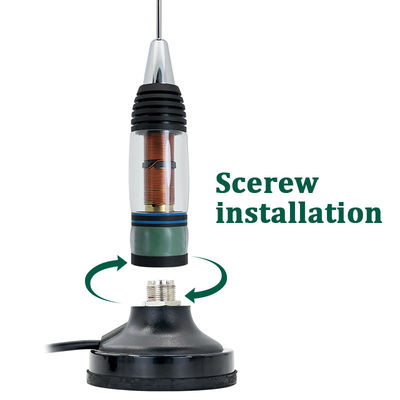

* Installation:

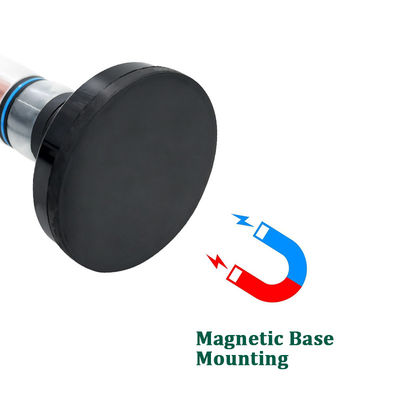

This antenna can be mounted by a bracket
or attached on the magnetic base or
connect with the equipment directly
Product Name | CB Antenna |
Model | BIO-C875 |
Frequency Range | 26-28MHz |
Gain | 1-2dBi |
V.S.W.R | 1.2:1 Max |
Impedance | 50 Ohm |
Polarization | Linear Vertical |
Max Power | 300W |
Cable | RG-58 |

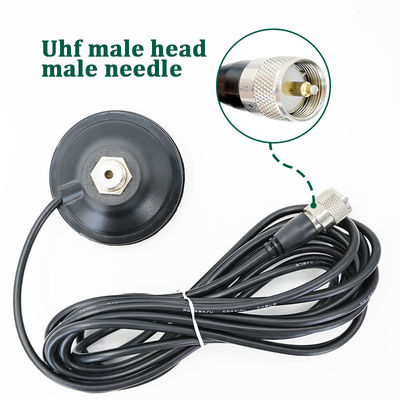

Connector | UHF(M)(Optional) |
Size | Φ78*726mm |
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
