Product Details:
|
| Type: | 2.4GHz & 5GHz Antenna | Frequency: | 698~960MHz / 1710~2170MHz / 2500~2700MHz |
|---|---|---|---|
| Gain: | 3-5 DBi | V.S.W.R: | 1.5 : 1 Max |
| Impedance: | 50 Ohm | Radiation Pattern: | Omni-directional |
| Polarization: | Linear Vertical | Cable: | RG-174(Optional) |
| Connector: | SMA (M) | Size: | 29*330mm |
| Port: | Dongguan | ||
| High Light: | 5dBi Outdoor Cell Booster Antenna,5dBi GSM Magnetic Antenna,GSM Outdoor Cell Booster Antenna |
||

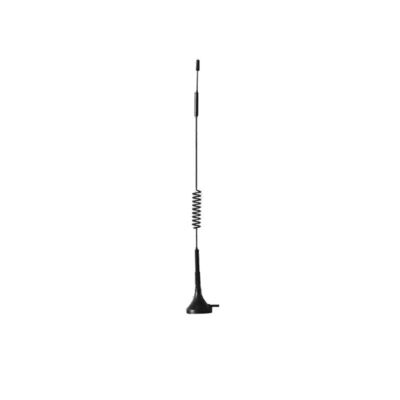

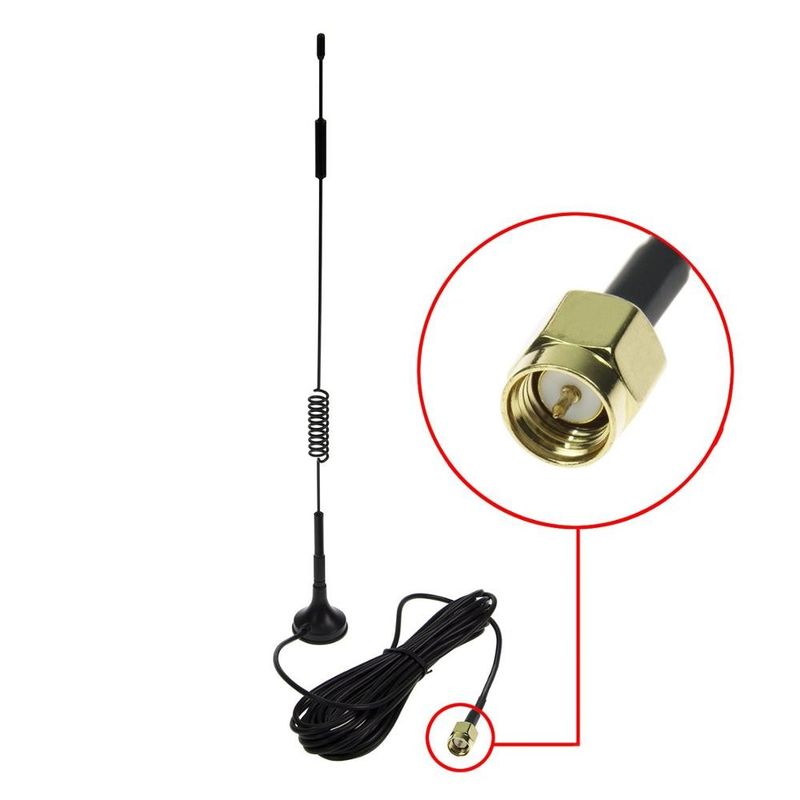

Magnetic base cell booster outdoor antenna lte 4g whip antenna wifi 4g lte 4g antenna outdoor
Features:
1. This is high gain output omni-directional antenna, boosts voice and data
2. This GSM antenna is easily to install, Installs on any ferrous metal surface.
3. Portable and can be removed easily, portable and easy to store
4. TPerfect for car, truck, RV installation
5. We warm welcome you to test the antenna, we can provide sample for testing before order.
Product Description
| Product name | Magnet Mount Antenna |
| Frequency | 698~960MHz/1710~2170MHz/2500~2700MHz |
| Gain | 3-5 dBi |
| V.S.W.R | 1.5 : 1 Max |
| Impedance | 50 Ohm |
| Radiation Pattern | Omni-directional |
| Polarization | Linear Vertical |

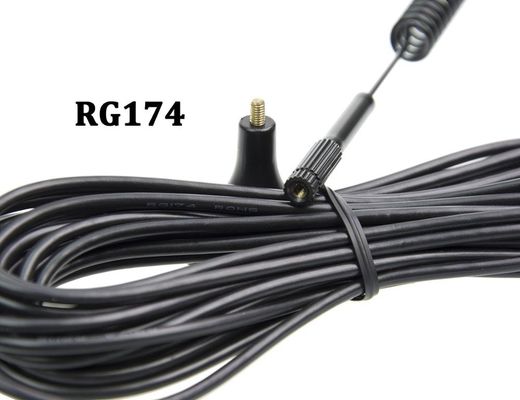

| Cable | RG-174(Optional) |

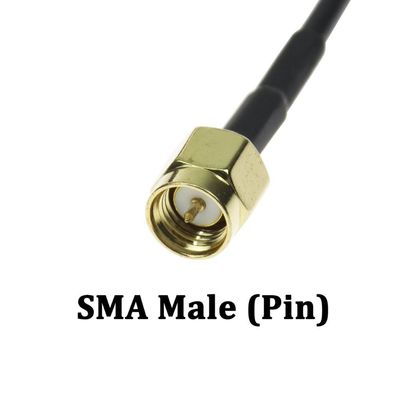

| Connector | SMA (M) |
| Size | 29*330mm |
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
