Product Details:
|
| Name: | Wifi Long Range Outdoor Antenna | Type: | 2.4GHz & 5GHz Antenna |
|---|---|---|---|
| Frequency: | 2.4-2.5GHz | Gain: | 14-18dBi |
| V.S.W.R: | 1.5:1 Max | Impendance: | 50 Ohm |
| Polarization: | Linear Vertical | Cable: | RG-58 |
| Connector: | N(F) | Dimension: | 285*170*62mm |
| Service: | OEM,ODM | Port: | Shenzhen |
| High Light: | 4G LTE Antenna 18dbi,2.5GHz 4G LTE Antenna,2.5GHz 18dbi Wifi Antenna |
||

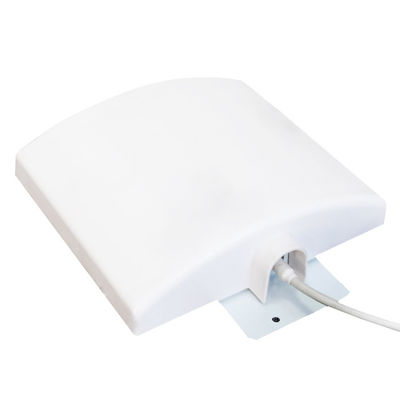

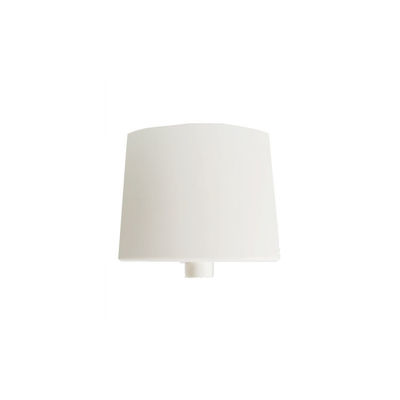

Waterproof Antennas For Communications Wifi Antenna Wifi Long Range Outdoor Antenna
Electrical Characteristics:
| WIFI Antenna Outdoor Omni Panel Antenna | ||
| Technical Specification | ||
|
|
Product Name | WALN Antenna |
| Model | BIO-F088 | |
| Frequency Range | 2.4-2.5GHz | |
| Gain | 14-18dBi | |
| V.S.W.R | 1.5:1 Max | |
| Impedance | 50 Ohm | |
| Radiation Pattern | Directional | |
| Polarization | Linear | |
| Cable | RG-58 | |
| Connector | N(F) | |
| Dimension |
285*170*62mm |
|
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
