Product Details:
|
| Type: | 2.4GHz & 5GHz Antenna | Product Name: | GSM/3G Antenna |
|---|---|---|---|
| Model: | BIO-G514 | Frequency Range: | 698-960MHz 1710-2170MHz 2500-2700MHz |
| V.S.W.R: | 1.8:1 Max | Impedance: | 50 Ohm |
| Polarization: | Linear Vertical | Connector: | S MA N Type(Optional) |
| Size: | 20*180mm | Port: | Shenzhen Port / Shanghai Port |
| High Light: | 5.5dBi Long Range Wifi Antenna,5.5dBi 4G Router Aerial,2.4 Ghz Long Range Wifi Antenna |
||

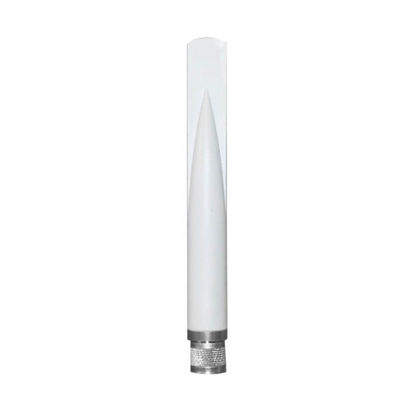

Coax Cable S Ma Long Distance Home Router Wifi Wlan 2.4G 5G 4G Omni Antenna
Aluminum Alloy Base
The base is perfectly made of aluminum and firm enough to against strong wind and other terrible weather.
Waterproof Sealing Technology
The top and bottom of antenna are used double sided waterproof processing and effectively against rainy weather
| Product Name | GSM/3G Antenna |
| Model | BIO-G514 |
| Frequency Range | 698-960MHz |
| 1710-2170MHz 2500-2700MHz | |
| Gain | 2.5-5.5dBi |
| V.S.W.R | 1.8:1 Max |
| Impedance | 50 Ohm |
| Polarization | Linear Vertical |
| Cable | / |
| Connector | S MA N Type(Optional) |

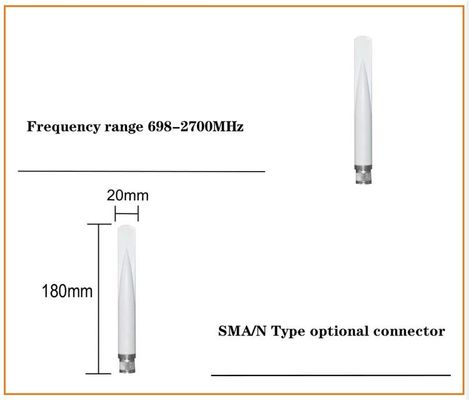

| Size | Φ20*180mm |
Main feature
1. - High gain ,full day working
2. - Good appearance
3. - Durable ,corrosion resistance
4. - Provide with mount kits
5. - Optimized dimension
6. - Designed by board band technology
Why choose us
1. Control quality strictly by QC and test before delivery.
2. Our tenet: Customer first and response fast.
3. Good and fast service: one seller to one customer.
4. Delivery on time as contract.
5. Accept OEM order and customized order.
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
