Product Details:
|
Type: | 2.4GHz & 5GHz Antenna | Product Name: | MIMO GSM Antenna |
---|---|---|---|
Frequency Range: | 698-960MHz/1710-2170MHz/2500-2700MHz | Gain: | 4-6 DBi |
V.S.W.R: | 1.5:1 Max | Impedance: | 50 Ohm |
Radiation Pattern: | Omni-directional | Polarization: | Linear Vertical |
Cable: | RG-58(Optional) | Connector: | N Type (optional) |
Size: | 185*120mm | Port: | Shenzhen |
High Light: | 50Km Dome Wifi Antenna,2600Mhz Dome Wifi Antenna,50Km Cellular Signal Booster Antenna |

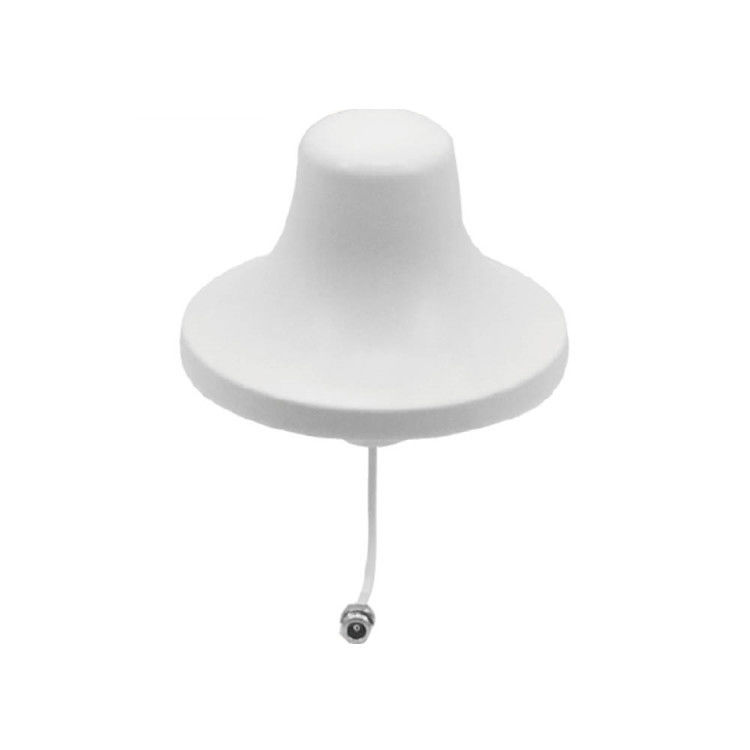

800~2600Mhz Long Range 50Km Doom Smartphone Signal Booster Indoor 4G Gps Wifi Cellular Antenna
• 4G Omni antenna - high gain outdoor 4G antenna for 2G/3G/4G frequencies - supplied with 1 x 5m cable with N-type connectors
• Wide band frequency: 698-960mhz / 1710-2170mhz /2500-2700, cover with 2G/3G antenna frequency This Omni diirectional 4G Lte antenna is good for receiving signals
Product Description
Model |
BIO-G905 |
Frequency Range |
698-960Mhz/1710-2170Mhz/2500-2700Mhz |
Gain | 4-6dBi |
V.S.W.R | 1.5:1 Max |
Impedance | 50Ohm |
Radiation Pattern | Omni-directional |
Polarzation | Linear |
Cable | RG58(Optional) |
Connector | N type(Optional) |

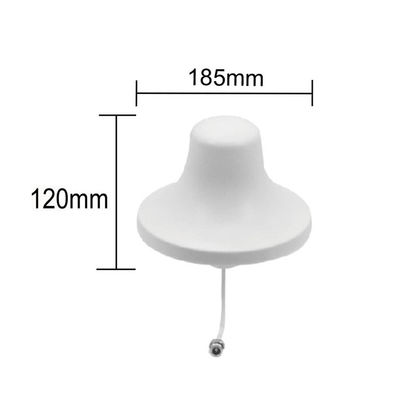

Size | Ø185*120mm |
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
