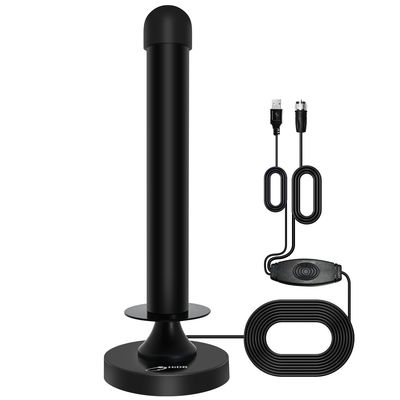

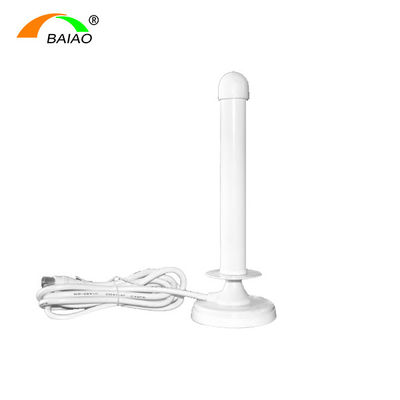

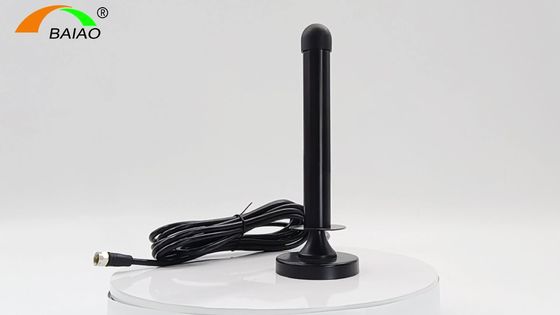

Product Details:
|
| Type: | Indoor | Frequency Range: | VHF: 147-230 MHz / UHF: 470-862 MHz |
|---|---|---|---|
| Color: | Black/White | Gain: | 5-30 DBi |
| Size: | Dia 70*193mm | Amplifier: | 20 DB |
| Connector: | IEC (M) / F ( M) Type( Optional) | Mount Type: | Ground Mount |
| Port: | Shenzhen | ||
| High Light: | 30dBi Indoor DVB T Antenna,Waterproof DVB T Antenna,ROHS SGS 30dBi car dvb t antenna |
||
| Frequency Range | VHF: 147-230 MHz / UHF: 470-862 MHz |
| Gain | 5-30 dBi |
| Amplifier | 20 dB |
| Type | indoor/outdoor |
| Color: | Black/White |
| Size | Dia 70*193mm |
| Connector: | IEC (M) / F ( M) Type( Optional) |
| input impedance | 75 Ohm |
| VSWR | 2.0:1MAX |
Best Crystal Clear Filter Technology!
This antenna picks up signals within a 50-miles range, the crystal clear filter tech filters out cellular and FM signals resulting
in low noise, a clearer picture and access to more free broadcast TV signals with enhanced gain, range and frequency performance.
Ultra Thin and Light Weight Design!
It allows to be placed near the best possible signal reception area, you can hide it behind the TV, lay flat on table, stick it
high on window. The long cable is convenient if your televisions is far away from windows!
Product usage introduction
➊ the end(f-male)of attached coaxial cable to the ANT/IN connector on the back of the TV or DVB-Ttuner.
➋ In the TV/'s setup menu,set the tuner mode to ''Antenna''or''Air''.for more detailed instructions,please refer to your TVmanual.
➌ In the Tv/'s setup menu,set TV to ''scan''for channels.this can sometimes be listed as auto-program,auto-scan,channel search or
channel scan.consult the tv manual for detailed instructions.
➍ If reception is sporadic,try moving the antenua to another location and rescanning the tv until optimal position is found.
➎ Fix the antenua at the optimal position you found.
