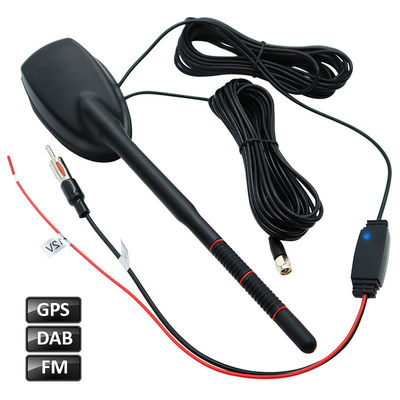

Product Details:
|
| Product Name: | GPS FM AM DAB Automotive Antenna | FM Frequency Range: | 87.5-108MHz |
|---|---|---|---|
| AM Frequency Range: | 530MHz-1710MHz | DAB Frequency Range: | 170-230MHz, 1452-1492MHz |
| GPS + Beidou Frequency Range: | 1561-1575.42MHz | Gain: | 20dB |
| Amplifier Gain: | 20dB | Operating Voltage: | 12V |
| Characteristic Impedance: | 75Ω | Current: | 25mA (±2) |
| High Light: | GPS FM AM DAB Car Antenna,High Gain 20dB vehicle antenna,Radio Vehicle roof antenna |
||
Peculiarity

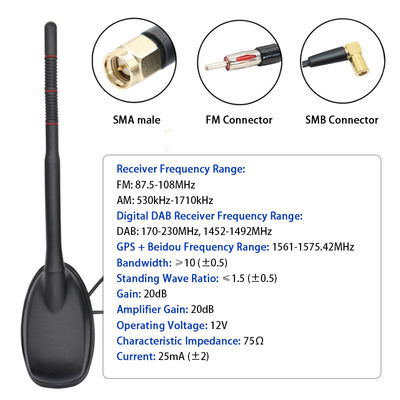

● Receiver Frequency Range: FM: 87.5-108MHz AM: 530kHz-1710kHz
● Digital DAB Receiver Frequency Range: 170-230MHZ/1452-1492MHZ
● DAB Frequency Range: 170-230MHz, 1452-1492MHz
● GPS + Beidou Frequency Range: 1561-1575.42MHz
● Bandwidth: ≥10 (±0.5)
● Standing Wave Ratio: ≤1.5 (±0.5)
● Gain: 20dB
● Amplifier Gain: 20dB
● Operating Voltage: 12V
● Characteristic Impedance: 75Ω
● Current: 25mA (±2)
Installation procedure
1. Install the antenna on the roof of the car.

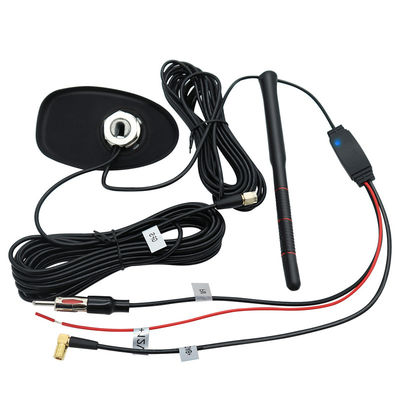

2. Use nuts to hold the antenna in place inside the car.
3. Pull the antenna output line into the dashboard along the roof.
4. Connect the power cord (12V) to the car antenna.
5. Connect the radio FM connector.
